The Earthcor exothermic welding process - simple & effective



Exothermic welding makes strong and low resistant electrical connections of various metals like; copper to copper, copper to steel and steel to steel. Without an external heat or power source.



The weld metal powder, consisting of powdered aluminium and copper oxide. The powder is poured into a graphite mould (as shown right) followed by the ignition powder. Nothing more than a spark is required to ignite the powder. The heat from the resultant exothermic reaction produces moulten copper and aluminium oxide slag. In a matter of seconds the molten copper melts the metal disc and flows down the tap hole and over the conductors in the weld chamber, melting them and welding them into a solid mass.



Benefits

• A greater current capacity than the conductors

• Lower electrical resistance than a mechanical joint

• Will not corrode - lasting indefinitely

• Lends itself to field work since it requires no external heat source

• Time saving (entire process takes only a few seconds)

• No special skills required, only minimal training

• Superior to all known mechanical or pressure connectors


NB. A number of codes on this page have changed. Please consult the latest catalogue for the new codes.

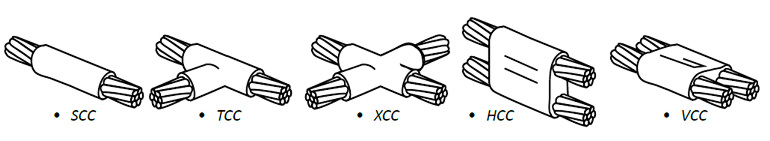

Cable to Cable / Rod to Rod

Flat Copper Bar to Earth Rod

Cable or Rod to Earth Rod

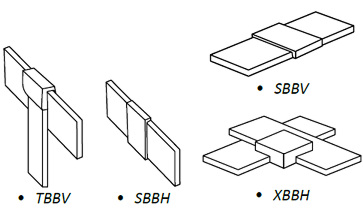

Copper Bar to Bar Connections

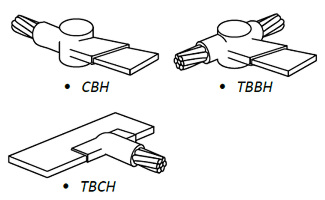

Copper Bar to Cable or Rod Connection

Studs to Steel - Vertical or Horizontal

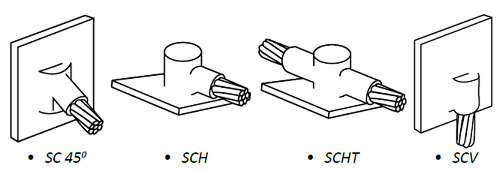

Cable or Rod to Steel - Vertical or Horizontal
